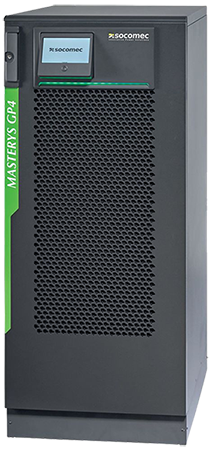

MASTERYS GP 4 (GREEN POWER)

Kesintisiz Güç Kaynakları /Socomec Kesintisiz Güç Kaynakları / 3 Faz - 3 Faz Online

MASTERYS GP 4 (GREEN POWER)

The solution for

• Small & medium-sized data centres
• Banks
• Medical facilities
• Medical devices
• Telecom & media infrastructure
• Transport
• Control rooms

Advantages

Superior design and reliability

• Oversized design margin: reliability first.
• Certified seismic resistance.
• Superior and officially attested MTBF.
• Long product life expectancy.

Unrivalled serviceability

• Innovative maintenance thanks to brick architecture.
• Rapid repairs: 5 times faster than legacy UPS.
• Totally front access maintenance.

Teknik Veriler
Dosyalar
Görseller
Diğer

Teknik Veriler

  •

    Sn [kVA]10152030406080100120160
    Pn [kW]10152030406080100120160
    Input / output 3/1•••-------
    Input / output 3/3••••••••••
    Parallel configurationup to 6 units
    Input
    Rated voltage400 V 3ph+N (3 wire input also available on demand)
    Voltage tolerance240 V to 480 V
    Rated frequency50/60 Hz ± 10%
    Output
    Power factor1 (according to IEC / EN 62040-3)
    Rated voltage1ph + N: 230 V (can be configured 220/240 V)
    3ph + N: 400 V (can be configured 380/415 V)
    Rated frequency50/60 Hz
    Efficiency (TÜV SÜD verified)
    Double conversion VFI modeup to 96.5%
    Eco Modeup to 99%
    Battery
    TechnologiesVRLA, NiCd, Li-Ion Battery
    Battery configurationseparated or shared
    internal - external    		separated or shared
    external
    Internal back-up time (min)
    Type S432191375-
    Type M410462432518
    Type T6-97-
    Reliability (MTBF)
    MTBF (VFI)> 350,000 hrs (attested)
    MTBF (UPS)> 10,000,000 hrs (attested)
    Environment
    Operating ambient temperaturefull performance up to +40 °C (without specific conditions)
    UPS Cabinet
    Type S4 -
    Dimension W x D x H    		444 x 800 x 800 mm-
    Type M4 -
    Dimension W x D x H    		444 x 800 x 1400 mm-
    Type M6 -
    Dimension W x D x H    		-444 x 855 x 1400 mm-
    Type T6 -
    Dimension W x D x H    		-600 x 855 x 1930 mm
    Weightdepends on the number of batteries installed - contact us
    Display3.5” (7” touch option)7” touch
    Degree of protectionIP20 (IP21 on demand)
    ColoursRAL 7016
    Advanced service performance
    Life extensionservice programme to avoid end of life
    Quick repair5 times less MTTR than legacy UPS by removable front access parts
    Standards
    SafetyIEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
    EMCIEC/EN 62040-2, AS 62040.2
    PerformanceIEC/EN 62040-3, AS 62040.3
    Environmentalfull compliance with the RoHS EU directive
    Seismic complianceon demand, in accordance with the Uniform Building Code UBC-1997 Zone 4
    Product declarationCE, RCM (E2376)

    (1) Max BUT @ 80% of the load.

Görseller

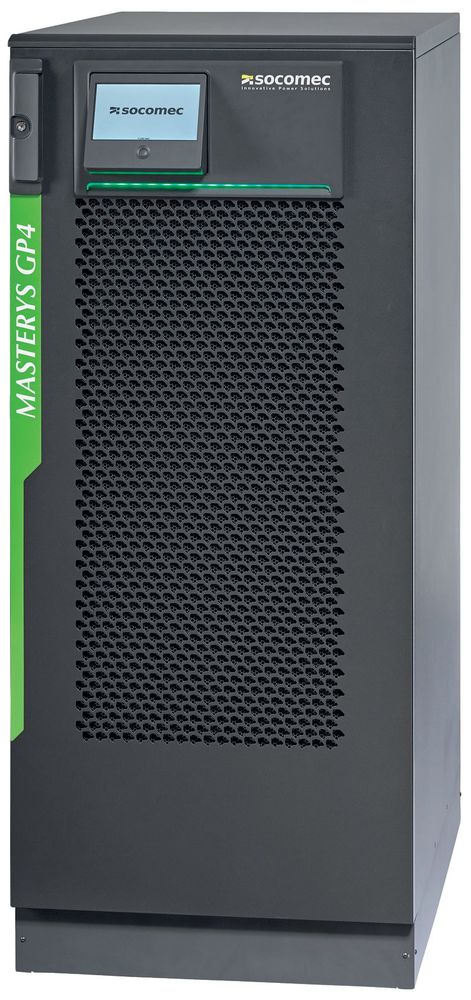

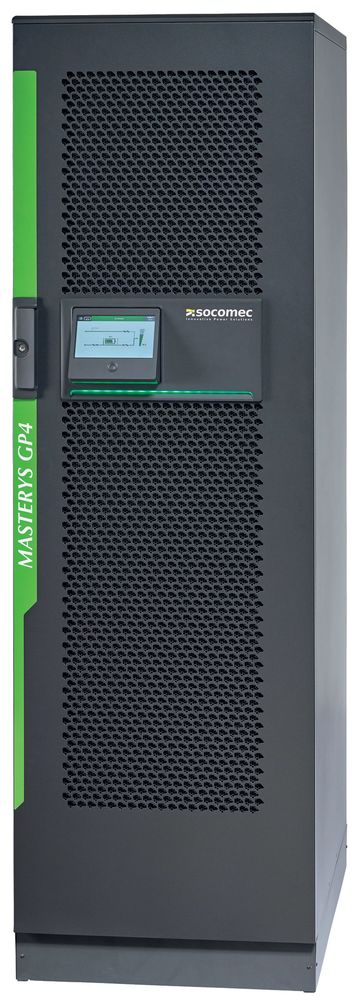

MASTERYS GP 4 (GREEN POWER)
MASTERYS GP 4 (GREEN POWER)

Diğer

System features

• Dual input mains.
• Internal maintenance bypass switch.
• Input mains switch breaker.
• Output switch breaker.
• Auxiliary mains switch breaker.
• Backfeed protection: detection circuit.
• Power walk-in ramp for full compatibility with generators.
• Normal and long-life battery.
• Common or shared battery for N+1 configuration.

Standard communication features

• User-friendly 7” touch screen with multilingual colour graphic display (60-160 kVA/kW).
• 2 slots for communication options.
• USB port for downloading UPS report and log file.
• Ethernet port for service purposes.

System options

• 3-phase input without neutral.
• Internal backfeed isolation device.
• Common mains coupling bars.
• TN-C grounding system.
• ACS synchronization system.
• IP21 degree of protection.
• Top cabling kit.
• Top ventilation kit.
• Redundant bypass fan.
• Seismic bracing kit.
